Live Value Overlay
Visualize live data in real-time, directly on your machine process layout
Install

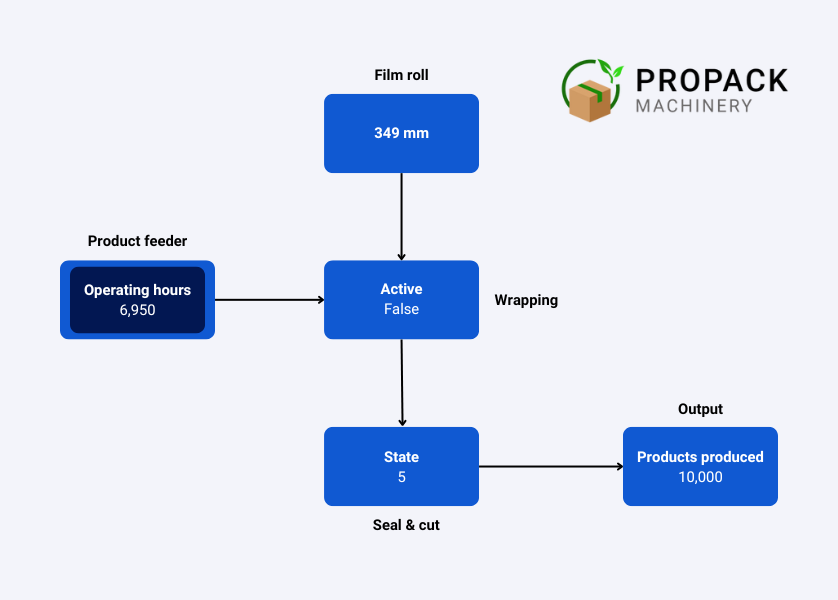

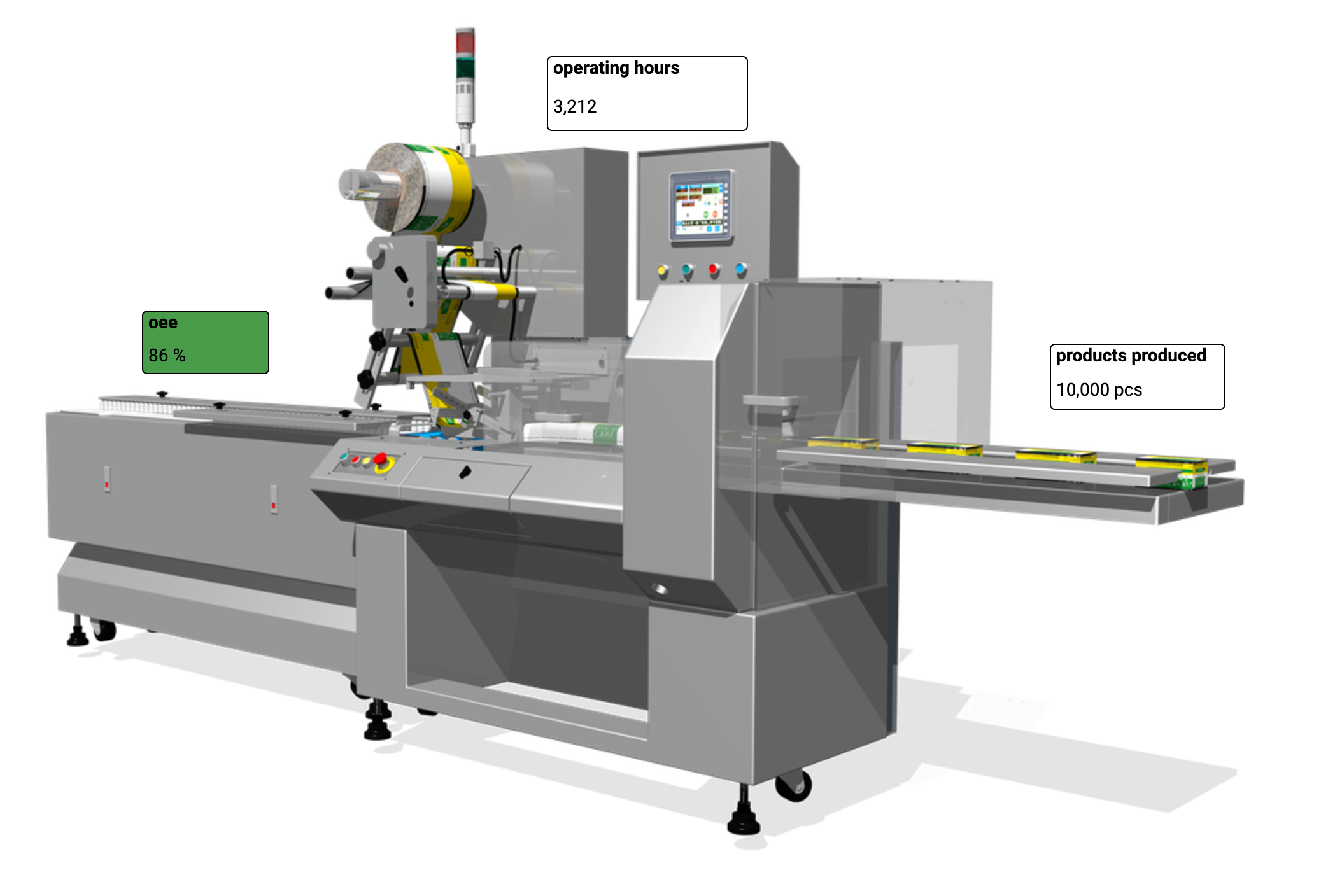

The Live Value Overlay app revolutionizes how you monitor and interpret machine performance. By overlaying live data directly onto an image of your machine or process layout, this app empowers operators and engineers to identify issues, trends, and optimization opportunities at a glance.
Key Features
- Real-time data visualization: Display live metrics such as temperature, pressure, or speed directly on your machine’s layout.
- Customizable overlays: Drag, resize, and configure overlay elements to fit your process image perfectly.
- Conditional formatting: Use rules to highlight critical values with dynamic colors, helping you quickly identify anomalies or thresholds.
- User-friendly design: Seamlessly toggle between edit and preview modes for effortless customization.
This app requires the IXON Professional plan.
Please note: this is a Workshop app. Workshop apps are provided 'as-is' and not supported by IXON.
Follow these steps to install the Live Value Overlay app:
- Install the Live Value Overlay app via your IXON portal.
- Enable the app in the Admin > Apps menu.
- Upload your process or machine layout image.
- Configure live data variables and set up rules for conditional formatting.
- Add the app to your pages via the IXON Studio and start visualizing live values immediately.
