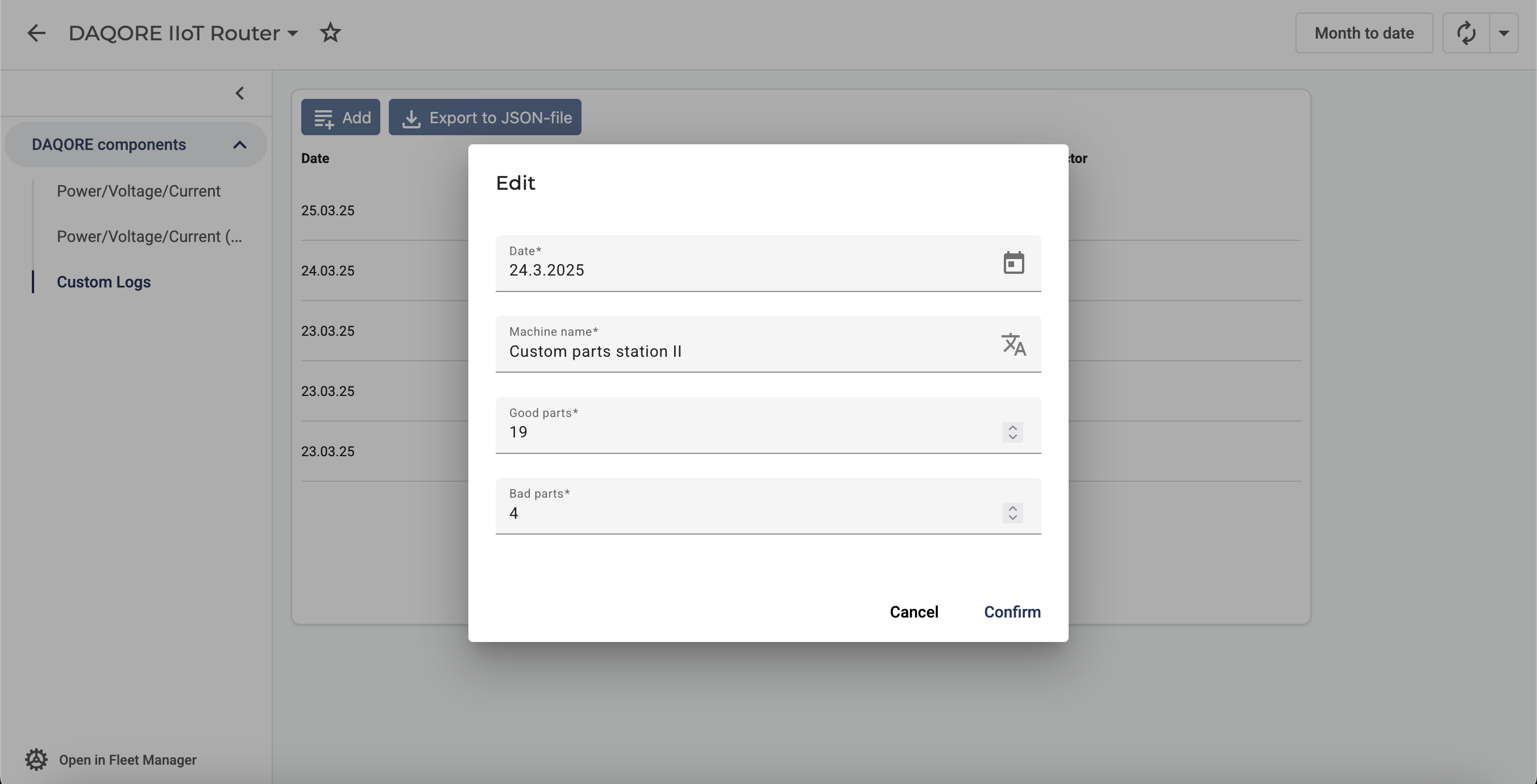

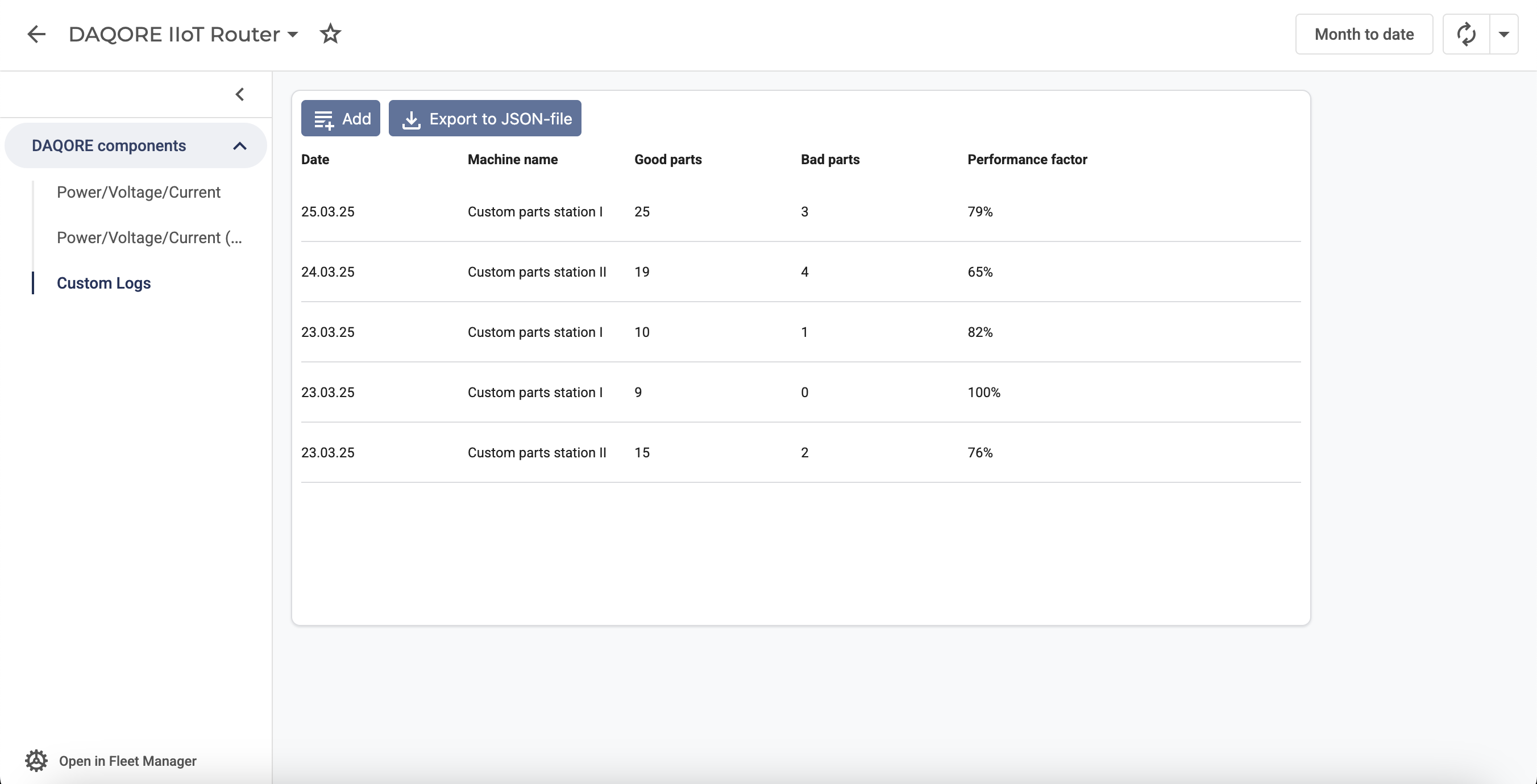

The DAQORE Custom Logs App is a solution for custom form inputs and visualization of manually logged data into IXON Cloud. Easily adjust the input mask and tabular output to your needs and start logging. Add, change and remove input fields without loosing existing data. Mathematical expressions (with operators and functions like +, -, *, /, (), sin, sqrt, etc.) can be configured to turn individual numerical inputs into meta data. Logged data can be filtered by time and exported by the users.

The manually logged data is stored inside your IXON company account and/or sent to a WebHook. The configuration of the input form fields and table view is done inside the Admin section of the IXON portal. Possible input field types are strings, texts, numbers, checkboxes, selections and dates. Its possible to group input fields into sections. Input fields might be required or optional.

Follow these steps to install:

  • Step 1: Enable the app in Admin > Apps > Enable

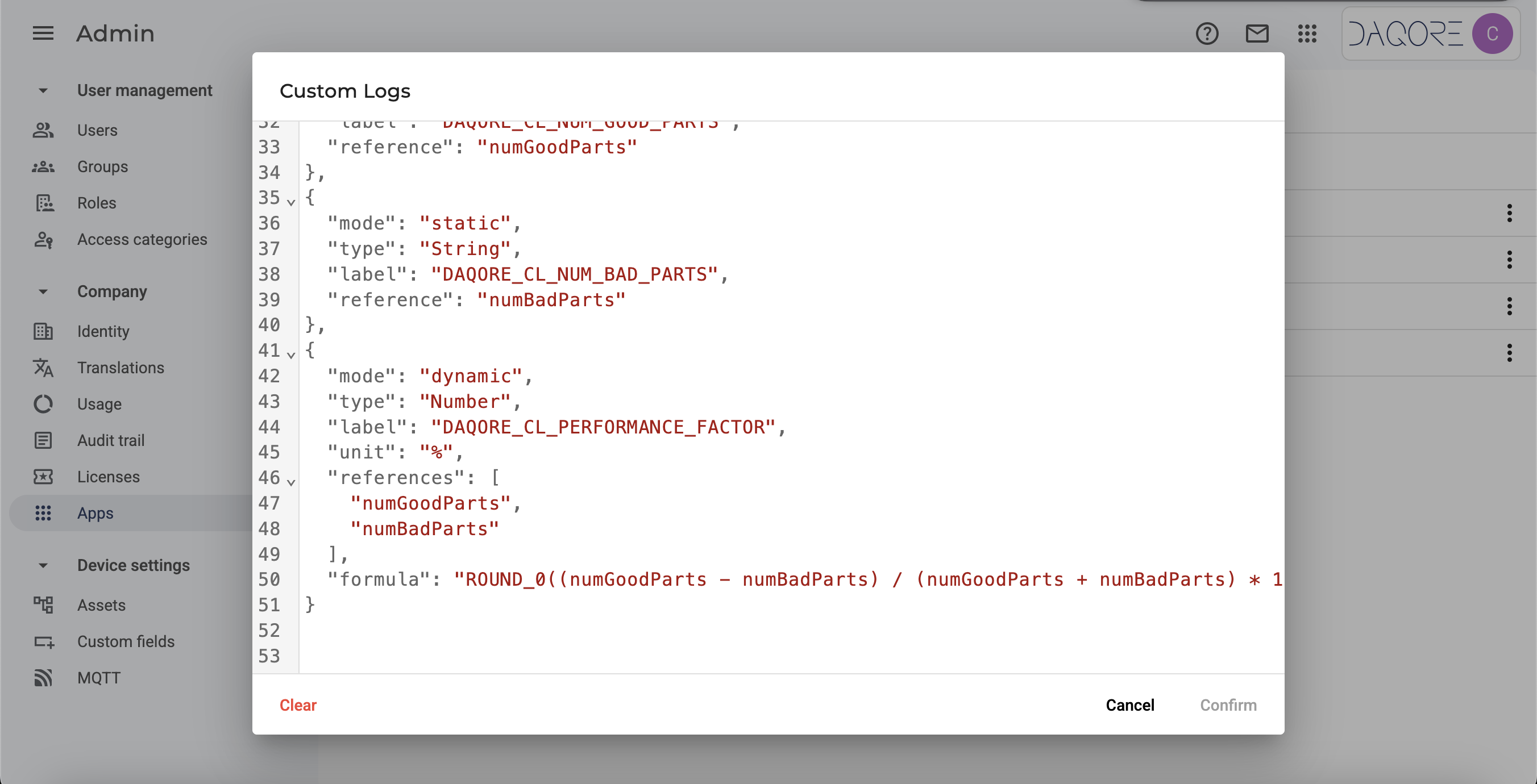

  • Step 2: Copy & paste the provided app configuration example in Admin > Apps > Edit
  • Step 3: Go to the Studio, open a page and drag and drop the Custom Logs UI component on a page.
